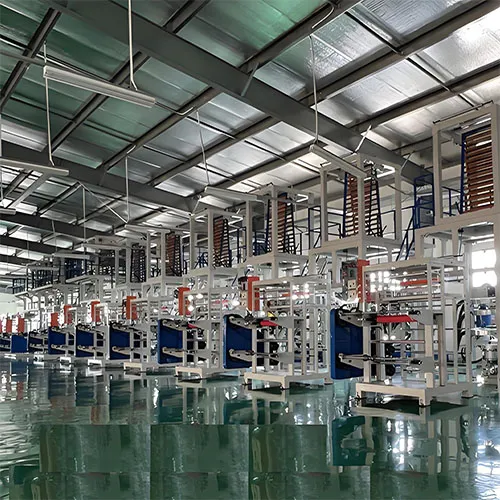

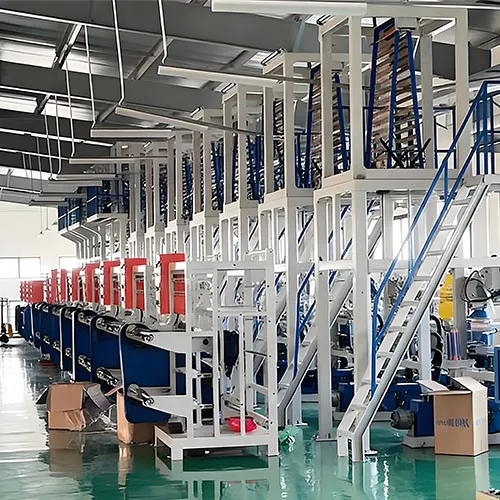

    Bone Bag Blown Film Machine

    High-Strength Alloy Core Deep Nitriding, Wear-Resistant Custom Screw

    Built for reliable long-run operation, the machine features a square-tube frame with a low-center gearbox for stable drive, high torque, and easy maintenance. The 38CrMoAlA alloy screw & barrel with deep nitriding enhances hardness and wear resistance, while automatic temperature control during heating helps maintain consistent processing. VFD traction provides a wide and stable speed range, and an optional center winder delivers neat winding and easier roll changes.

    Get a Free Quote

    Product Parameters



    Parameter SJ-45 SJ-55 SJ-65
    Model (ABA) SJ-45 SJ-55 SJ-65
    Screw Diameter (mm) Φ45 Φ55 Φ65
    Screw L/D Ratio 30:1 30:1 30:1
    Screw Speed (r/min) 10-100 10-100 10-100
    Main Motor Power (kw) 25-40 35-50 40-60
    Max Output (kg/h) 11 15 18.5
    Film Single-Side Thickness (mm) 0.01-0.15 0.01-0.15 0.01-0.15
    Max Folding Diameter (mm) 700 1000 1200
    Total Power (kw) 15 18.5 23
    Overall Dimension (L×W×H) (m) 5500*1300*4000 5500*1600*4500 4600*2300*5000
    Machine Weight (kg) 2000 2300 2800

    Product Details

    Bone Bag Blown Film Machine
