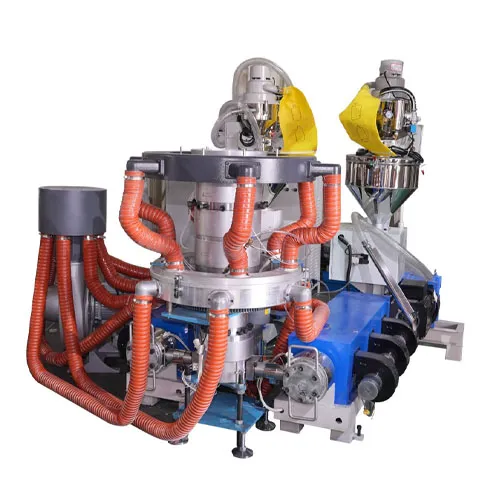

    High Speed ABA and AB Yin-yang Film Blowing Machine

    ABA & AB Film Structures High-Speed Stable Production Uniform Film Quality

    The High Speed ABA & AB Yin-Yang Film Blowing Machine is designed for stable, high-efficiency production of polyethylene films. It supports both ABA co-extrusion and AB yin-yang film structures, providing flexible solutions for packaging and functional film applications.

    Built for continuous high-speed operation, the machine ensures uniform film thickness, stable melt flow, and reliable long-term performance. The optimized extrusion system and precise temperature control deliver consistent film quality across different materials and thickness ranges.

    Get a Free Quote

    Product Parameters

    Item 45-700/900 50-900 55-1200
    Film Width 200–500 / 200–700 mm 200–700 mm 500–1000 mm
    Film Thickness HDPE: 0.008–0.08 mmLDPE: 0.02–0.15 mm
    Output 25–85 kg/h 30–100 kg/h 35–120 kg/h
    It varies depending on the film width, film thickness, die head size, and the characteristics of the raw materials.
    Applicable Materials HDPE, LDPE
    Screw Diameter Φ45 Φ50 Φ55
    Screw L/D Ratio 2:1 with forced feeding
    Gearbox 146# 173# 180#
    Main Motor Power 15 kW 18.5 kW 22 kW
    Die Diameter Φ60 / 150 mm Φ80 / 150 mm Φ100 / 250 mm
